General Information:
|

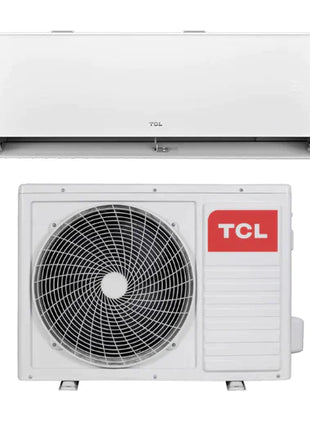

| Indoor/Outdoor Unit |
TAC-24CHSD/TPH11IT |
| Operation Type |
Reverse Cycle |
|
|
Noise (Sound Power Level):
|
| Indoor Unit – dB (A) |
54 |
| Outdoor Unit – dB (A) |
63 |
|
|
Rated Values:
|
| Cooling Capacity (KW) |
7.2 (2.0~8.0) |
| Heating Capacity (KW) |
7.2 (2.0~8.5) |
| Rated Input-Cooling (KW) |
1.9 |
| Rated Input-Heating (KW) |
1.7 |
| Moisture Removal (Litre/Hour) |
2.6 |
| AEER |
3.76 |
| ACOP |
4.2 |
| Energy Star Rating for Cooling (Hot & Humid) |
3.5 |
| Energy Star Rating for Cooling (Mixed) |
3.5 |
| Energy Star Rating for Cooling (Cold) |
3.5 |
| Energy Star Rating for Heating (Hot & Humid) |
3 |
| Energy Star Rating for Heating (Mixed) |
2.5 |
| Energy Star Rating for Heating (Cold) |
2 |
|
|
Electrical Data:
|
| Power Supply |
220-240V~50Hz |
| Rated Current Cooling (A) |
8.7 |
| Rated Current Heating (A) |
7.9 |
| Max Current (Cooling / Heating) (A) |
12/11.5 |
| Max Input (Cooling / Heating) (W) |
2600/2500 |
| Standby Power (W) |
5 |
| Outdoor Operating Temperature Range (°C) |
-15°C~52°C |
| Indoor Operating Temperature Range (°C) |
16°C~31°C |
| Breaker Size (A) |
20 |
|
|
Fan System:
|
| Air Circulation (L/S) Cooling |
333.33 |
| Air Circulation (L/S) Heating |
333.33 |
Refrigerating System:
|
|
| Compressor Type |
Inverter |
| Refrigerant (type/gram) |
R32 / 1125g |
|
|
Piping:
|
| Liquid Pipe (mm) |
Ø 6.35 (1/4″) |
| Gas Pipe (mm) |
Ø 12.7 (1/2″) |
| Maximum Piping Length (m) |
15 |
| Max Height Difference (m) |
5 |
|
|
Dimensions / Weight:
|
| Product Dimensions-Indoor (W x D x H) |
1097 x 332 x 222mm |
| Product Dimensions-Outdoor (W x D x H) |
920 x 380 x 699mm |
| Net Weight-Indoor (kg) |
14 |
| Net Weight-Outdoor (kg) |
42 |
| Carton Dimensions-Indoor (W x D x H) |
1165 x 405 x 295mm |
| Carton Dimensions-Outdoor (W x D x H) |
960 x 400 x 732mm |
| Gross Weight with Packaging-Indoor (kg) |
17 |
| Gross Weight with Packaging-Outdoor without pipe (kg) |
45 |
