Insert Convection Wood Heater
Kent wood heaters, the ultimate heating solution for your home. Kent's range of high-quality and efficient wood heaters are designed to provide warmth, comfort and style to any interior. With cutting-edge heating technology and sleek designs, Kent Fairlight Insert Wood Heater is perfect for any home decor. Plus, their eco-friendly features ensure clean and healthy air in your home. Shop now and experience the beauty and warmth of a Kent wood heater, the perfect addition to your home.

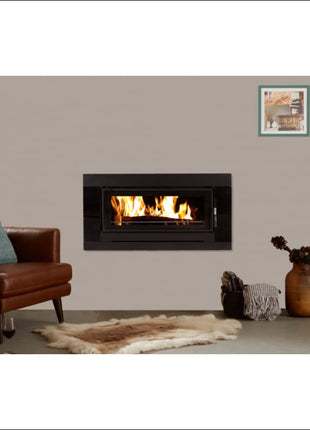

Sleek and sophisticated, the Kent Fairlight insert wood heater features clean and simple lines for the ultimate modern home. Brand new to the market, the Fairlight range is striking in looks yet packed with the latest features.
Perfect for heating larger areas, this Fairlight Insert Wood Heater boasts coverage of up to 300 square meters and is one of the cleanest burning heaters on the market, with low emissions of 0.7g/kg.

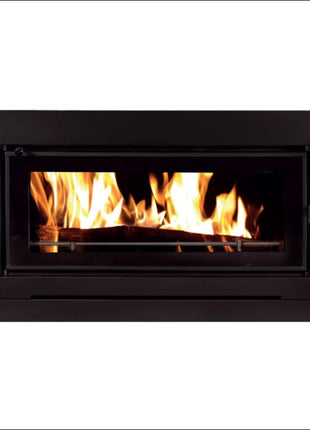

One of the standout features is the large glass landscape door, designed to highlight the roaring fire.
Built to last, the large firebox is lined with SKAMOLEX™ technology and doesn’t require any firebrick lining, which means less maintenance and no replacement costs. With a burn time of up to 8.5 hours, the Fairlight is fitted with a 3-speed fan for optimum heat control.
Backed with a 10 year warranty, the Kent Fairlight Insert will keep your family warm winter after winter.
Flue kits are extra Click Here to see flues or Contact us Here to discuss your needs.
DIMENSIONS & CLEARANCES
Height (mm): - 780mm
Depth (mm): - 496mm
Width (mm): - 1190mm
Rear Of Heater To Flue Centre - (mm) 179mm
Flue Diameter - 6 Inch
Rear Wall Clearance - 175mm
Hearth Clearance - 400mm
Corner Clearance - 10mm
Side Wall Clearance - 375mm
SPECIFICATIONS OF KENT FAIRLIGHT INSERT WOOD HEATER
Heating Type - Insert Wood Heater
Heating Style - Convection
Capacity (m²) output - 280kW
Recommended Hearth - Maxiheat 1.2M X 1.2M Gloss Black Hearth
Recommended Flue Kit - Pellet Heater Chimney Kit
Area Size - Indoor Large
Fuel - Hardwood
Firebox Warranty - 10 Years
INSTALLATION GUIDE
LOCATION
Select a location for your Kent Fairlight Insert wood heater with great care.
- Do not place your heater in areas of high traffic, near furniture or draperies.
- Check that the intended location will not interfere with ceiling joists, rafters, valleys and ridges.
HEARTH REQUIREMENTS
If your Kent Fairlight Insert wood heater is to be installed on carpet, timber or any other combustible material, you must place a hearth (also known as a floor protector) underneath the heater. Please observe the following:
- The hearth must consist of at least a 7.5 mm thick compressed fibre cement sheet with a thermal conductivity not greater than 0.33 W/m°K
- The top surface of the hearth must be no less than 40 mm above the floor.
- The hearth must be no less than 1150 mm wide
- It is not recommended that you make your own hearth
- The hearth and heater assembly must be placed on a firm and level surface
HEARTH CLEARANCES
It is necessary to ensure that the heater is positioned on the hearth so that the following requirements are observed:
- The front of the hearth should extend past the front of the heater by 400 mm.
- The side of the hearth should extend past the firebox opening by a minimum of 200 mm on each side.
HEATER CLEARANCES
It is vital that the heater be installed at the proper distance from combustible surfaces like wood, gyprock and curtains. These minimum distances you need to observe for your particular heater are stated below. The diagrams show both parallel and corner installations. Please note the heater clearances are to the upper body of the heater and not to the bench. Failure to maintain these minimum distances may result in a fire for which your insurer may refuse to cover.
REDUCED CLEARANCES
These clearances can be reduced with proper heat shielding. A non-combustible surface is placed between the heater and the combustible wall. It is vital that an unobstructed airflow be maintained between the two surfaces to remove excess heat.
Fairlight Manual
