Description

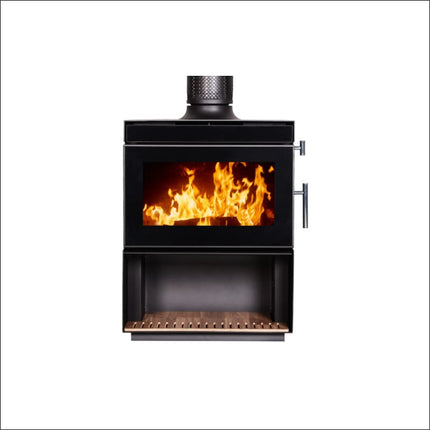

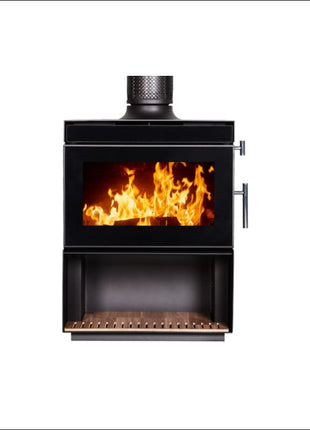

Kent Calisto Large Wood Heater
Kent wood heaters are the ultimate heating solution for your home. Kent's range of high-quality and efficient wood heaters is designed to provide warmth, comfort and style to any interior. With cutting-edge heating technology and sleek designs, Kent Calisto Large wood heaters are perfect for any home decor. Plus, their eco-friendly features ensure clean and healthy air in your home. Shop now and experience the beauty and warmth of a Kent wood heater, the perfect addition to your home.
Designed to be more efficient than ever, the Kent Calisto Large Freestanding Wood Heater combines technology with modern design. With up to 300 square meters of coverage, the Calisto is the perfect slow-combustion heater for large homes.
This efficient and environmentally friendly log fire is one of the cleanest burning heaters on the market, burning cleaner than the national standard for emissions of 1.5g/kg. Which makes it three times cleaner than the national standard.
Sturdy in construction, the firebox comes with a 10-year firebox warranty. This wood-burning heater is designed to heat your home for many years.
This heater requires a six inch flue kit
Flue kits are extra Click Here to see flues or Contact us Here to discuss your needs.
DIMENSIONS & CLEARANCES
Height (mm): - 986mm
Depth (mm): - 558mm
Width (mm): - 769mm
Rear Of Heater To Flue Centre - (mm) 182mm
Flue Diameter - 6 Inch
Rear Wall Clearance - 150mm
Hearth Clearance - 470mm
Corner Clearance - 200mm
SPECIFICATIONS OF KENT CALISTO LARGE
Heating Type - Freestanding Wood Heater
Heating Style - Convection
Capacity (m²) - output Heats up to 300 m² (30 squares)
Overnight Burn Time - Up to Med 9.5hrs
Fan - Yes, 3 Speed
Area Size - Indoor Large Homes
Fuel - Hardwood
Firebox Warranty - 10 Years
INSTALLATION
LOCATION
Select a location for your Kent Calisto Large Wood Heater with great care.
- Do not place your heater in areas of high traffic, near furniture or draperies.
- Check that the intended location will not interfere with ceiling joists, rafters, valleys and
- ridges.
HEARTH REQUIREMENTS
If your Kent Calisto Large Wood Heater is to be installed on carpet, timber or any other combustible material, you must place a hearth (also known as a floor protector) underneath the heater. Please observe the following:
-
Small and Medium: The hearth must consist of at least 5 mm compressed fibre cement with a thermal conductivity not greater than 0.33 W/m°K
-
Large: The hearth must consist of at least 15 mm compressed fibre cement with a thermal conductivity not greater than 0.33 W/m°K.
- It is not recommended that you make your own hearth.
- The hearth and heater assembly must be placed on a firm and level surface.
HEARTH CLEARANCES
It is necessary to ensure that the heater is positioned on the hearth so that the following requirements are observed.
- The front of the hearth should extend past the front of the heater by the distance specified by D.
- The side of the hearth should extend past the firebox opening by a minimum on each 200 mm side.
HEATER CLEARANCES
It is vital that the heater be installed at the proper distance from combustible surfaces like wood, gyprock and curtains. The minimum distances you need to observe for your particular heater are below. The diagrams show both parallel and corner installations. Failure to maintain these minimum distances may result in a fire for which your insurer may refuse to cover.
REDUCED CLEARANCES
These clearances can be reduced with proper heat shielding. A non-combustible surface is placed between the heater and the combustible wall. It is vital that an unobstructed airflow be maintained between the two surfaces to remove excess heat.
Calisto Manual
