Description
6 Burner Black Built-In BBQ
INSTALLATION INFORMATION
Warning: These BBQ’s are only to be used outdoors, they must not be used indoors. If storing indoors, remove the gas cylinder. The BBQ can be used/installed in an alfresco area in accordance with the following: Alfresco area must comply with the definition of an outdoor area in AS4557:2004 clause1.2.46 - Natural gas BBQ’s must be installed only by an authorized person-Clearances to combustible materials must be maintained. - If installed below a rangehood, the minimum distance from the cooking grid/plate to the rangehood is 1200mm:
Refer to the instruction manual for further details.
Features
- 6 gas burner unit with rear burner
- 1 infrared rear burner
- Rotisserie set & 10 amp plug in motor
- Black powder coated finish
- 304 grade stainless steel tube burners
- 430 grade stainless steel flame tamers
- Ceramic infrared rear burner
- 2 cast iron cooking grills
- 1 Reversible cast iron griddle plate
- 1 stainless steel warming rack
- Easy removable drip tray
- Push button battery ignition
- Control knob blue lighting
- Side heat deflectors (for built-in use)
- LPG jets fitted
- Natural gas conversion (Optional)
- BBQ cover included
SPECIFICATIONS:
Cooking Area Dimension: W960mm x D455mm
Lid Type: Hood
No. of Burners: 6
Plate and Grill: Cast Iron
Weight: 69.0kg gross / 62.0kg net
Total Gas Consumption: 90.5 MJ/h LPG / 79.0 MJ/h natural
Main Burners Gas Consumption: 13.0 MJ/h LPG / 11.0 MJ/h natural
Infrared Burner: 12.5 MJ/h LPG / 13.0 MJ/h natural
IMPORTANT INFORMATION
For natural gas conversion, please refer to the Instruction manual, which an authorised person must install. Propane gas bottle not included.

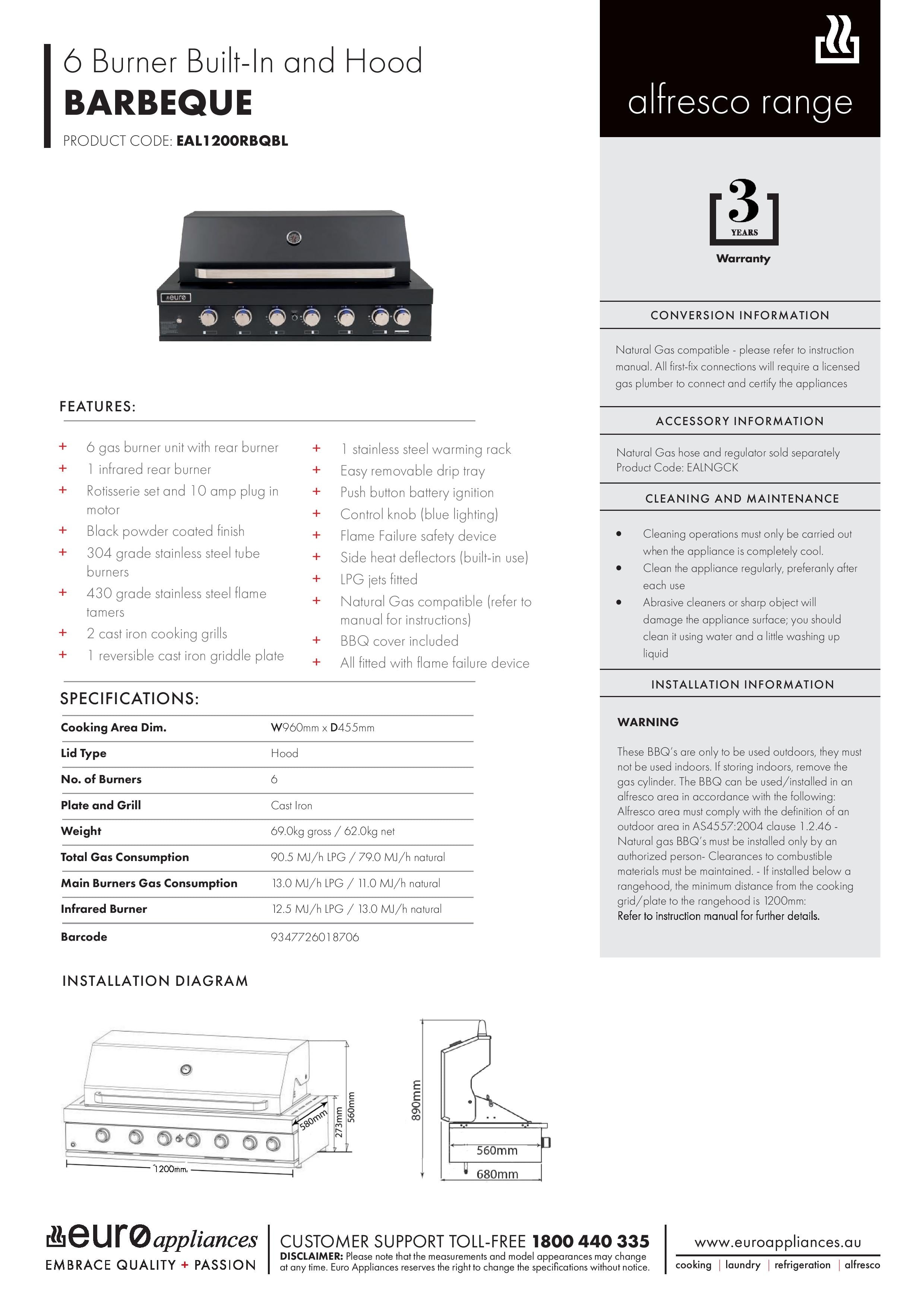

Product Spec Sheet
