Description

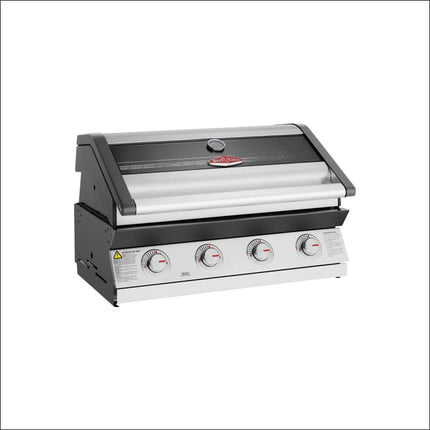

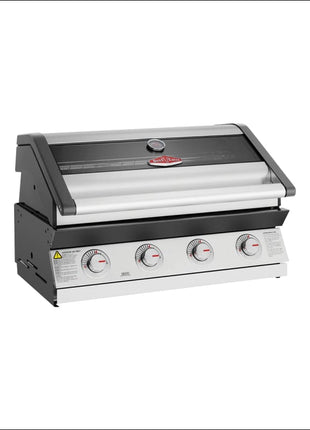

304 Stainless Steel 4 Burner Built-In BBQ
Bring durable Beefeater performance into your outdoor kitchen with the Beefeater 1600 Series 4 Burner Built-In BBQ in Stainless Steel (BBG1640SA).
Powered by four 15 MJ/hr cast-iron burners, the BBG1640SA delivers 60 MJ/hr of total burner output, providing plenty of heat for everyday grilling, family BBQs and hood-down cooking. Stainless steel vaporisers disperse the flames across the grill and hotplate while helping reduce flare-ups.
The generous 3,840cm² cooking area combines a porcelain-enamelled cast-iron grill and hotplate, while the 304-grade stainless steel finish gives the BBQ a premium appearance that's particularly well suited to a permanent outdoor kitchen.
Add a double-layer rollback hood with full-width glass viewing window, integrated temperature gauge, elevated cooking rack, Quartz Start ignition and front-access grease tray, and the BBG1640SA delivers a practical combination of cooking performance, durability and convenience.
Why Choose the Beefeater 1600 Series 4 Burner?
The BBG1640SA offers a strong combination of premium stainless steel styling, cast-iron cooking performance and a relatively compact built-in footprint.
Key Features
- 4 × 15 MJ/hr cast-iron burners
- 60 MJ/hr total burner output
- 3,840cm² total cooking area
- 304-grade stainless steel finish
- Porcelain-enamelled cast-iron hotplate
- Porcelain-enamelled cast-iron grill
- Stainless steel vaporisers
- Double-layer rollback roasting hood
- Full-width glass viewing window
- Integrated temperature gauge
- Elevated multifunctional cooking rack
- Quartz Start ignition on all burners
- Fully seam-welded vitreous enamel firebox
- Front-access full-width drip tray
- Individual zinc cast control dials
- Natural Gas conversion available
- 804mm overall width
These features make the 1600 Series particularly well suited to customers wanting a quality built-in BBQ without moving to the larger footprint or higher price of Beefeater's premium 7000 Series.
Four Cast-Iron Burners
The BBG1640SA is powered by four cast-iron burners, each rated at:
15 MJ/hr
Together they produce:
60 MJ/hr Total Burner Output
Beefeater uses cast iron for its durability, fast heat-up and consistent cooking performance. Each burner is independently controlled, allowing you to create different heat zones across the cooking surface.
Turn the heat up for:
- Steak
- Burgers
- Lamb
- Kebabs
- Seafood
- High-temperature grilling
Or create lower-temperature zones for:
- Chicken
- Sausages
- Vegetables
- Larger cuts
- Roasting
- Indirect cooking
The four independently controlled burners also allow you to turn selected burners off when setting the BBQ up for indirect cooking.
3,840cm² Cooking Area
The BBG1640SA provides a generous 3,840cm² total cooking area, giving you plenty of room for everyday family meals and entertaining.
The cooking surface includes:
- 1 porcelain-enamelled cast-iron hotplate
- 1 porcelain-enamelled cast-iron grill
This traditional Australian BBQ configuration gives you the versatility to grill and flat-plate cook at the same time.
Use the Grill For
- Steak
- Chicken
- Lamb
- Burgers
- Fish
- Kebabs
- Vegetables
Use the Hotplate For
- Bacon
- Eggs
- Sausages
- Onions
- Smash burgers
- Prawns
- Breakfast cooking
Porcelain-Enamelled Cast-Iron Grill & Hotplate
Both the grill and hotplate are made from porcelain-enamelled cast iron.
Cast iron heats quickly, retains heat effectively and provides excellent cooking performance, while the porcelain-enamel coating creates a durable, rust-resistant cooking surface.
This combination makes the 1600 Series well suited to everything from quick weeknight cooking to longer weekend BBQ sessions.
304-Grade Stainless Steel Finish
One of the major differences between the BBG1640SA and the Graphite BBG1640DA is its 304-grade stainless steel finish.
The stainless appearance works particularly well with:
- Custom outdoor kitchens
- Stone benchtops
- Stainless steel sinks
- Stainless steel fridges
- Black or charcoal cabinetry
- Timber-look cabinetry
- Contemporary alfresco areas
For customers building a permanent outdoor kitchen, the stainless finish also gives the BBQ a clean, integrated appearance alongside other outdoor appliances.
Double-Layer Rollback Hood
The BBG1640SA features a double-layer stainless steel rollback roasting hood.
The rollback design allows the hood to move backwards over the BBQ rather than requiring the same rear swing space as a conventional hinged hood.
Close the hood and use the BBQ for:
- Whole chicken
- Roast meats
- Larger cuts
- Indirect cooking
- Hood-down grilling
- Slower BBQ cooking
This significantly increases the versatility of the 1600 Series beyond conventional open grilling.
Full-Width Glass Viewing Window
The roasting hood incorporates a full-width glass viewing window, allowing you to check what's cooking without continually opening the hood and releasing heat.
It's particularly useful for:
- Roasts
- Whole chickens
- Brisket
- Larger cuts
- Longer indirect cooks
Integrated Temperature Gauge
An integrated temperature gauge is built into the roasting hood.
Combined with the full-width viewing window, it provides an easy way to monitor the cooking environment while leaving the hood closed.
Stainless Steel Vaporisers
The BBG1640SA uses stainless steel vaporisers above its cast-iron burners.
Beefeater states that the vaporisers efficiently disperse the flames across the grill and hotplate while reducing flare-ups.
This helps:
- Distribute heat across the cooking surface
- Protect burners from food drippings
- Reduce flare-ups
- Improve cooking consistency
Elevated Multifunctional Cooking Rack
Above the primary cooking surface is a chrome-wire elevated multifunctional cooking rack.
Use it to:
- Keep cooked food warm
- Warm burger buns
- Hold sausages
- Rest cooked meat
- Cook food further away from direct heat
- Create a second elevated cooking area
It's a simple feature that adds useful additional capacity without increasing the footprint of the BBQ.
Quartz Start Ignition
The BBG1640SA features Quartz Start ignition on all four burners.
Beefeater describes the system as designed to provide quick and easy starting, helping you get the BBQ fired up without a complicated ignition process.

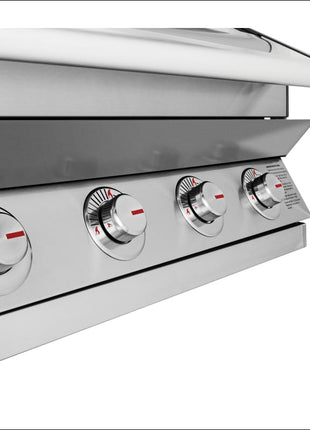

Individual Burner Controls
Each of the four burners has its own front-mounted control dial.
This allows you to control each section of the cooking surface independently—for example, running the hotplate hotter for searing while keeping the grill side lower for slower cooking.
The individual zinc cast control dials feature clear heat-level graphics and laser-etched markings.
Fully Seam-Welded Vitreous Enamel Firebox
Underneath the stainless steel exterior, the BBG1640SA uses a fully seam-welded vitreous enamel firebox.
The seam-welded construction creates a durable cooking chamber and helps reduce gaps where grease and moisture could accumulate.
Front-Access Full-Width Drip Tray
Cleaning a built-in BBQ needs to be straightforward, particularly once the appliance is permanently installed into cabinetry.
The BBG1640SA features a full-width front-access drip tray. The hotplate's raised sides help prevent grease and oil from spilling over its edges, instead directing it towards the opening and into the front-access catchment tray.
This means routine grease cleanup can be handled from the front of the BBQ without needing access behind the appliance.

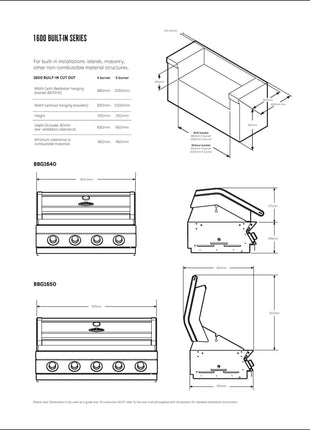

Compact 804mm Built-In Width
One of the strongest practical features of the BBG1640SA is its relatively compact size.
The overall dimensions are:
- Width: 804mm
- Depth: 555mm
- Height with hood closed: 517mm
-
Height with hood open: 903mm
Despite being only 804mm wide, the BBQ still provides four independently controlled burners and a substantial 3,840cm² cooking area.
This makes it particularly well suited to:
- Medium-size outdoor kitchens
- Alfresco areas
- Kitchens incorporating a separate side burner
- Kitchens where preparation space is important
- Outdoor kitchens with sinks and refrigeration
- Customers wanting a capable four-burner BBQ without an oversized footprint
These are the overall appliance dimensions, not the required cabinetry cut-out. Always use Beefeater's current installation instructions when designing cabinetry and stone around the BBQ.
Natural Gas Conversion Available
The BBG1640SA can be converted to Natural Gas.
Beefeater lists the BNGB001 Natural Gas Conversion Kit as compatible with the BBG1640SA. The same kit supports compatible 7000, 1600, 1500 and 1200 Series built-in BBQs.
Gas conversion and connection should be completed in accordance with Beefeater's instructions and applicable Australian gas requirements.
Compatible Rear Heat Shield
For outdoor-kitchen installations, Beefeater lists the BA10RHS Rear Heat Shield as compatible with the BBG1640SA.
The correct installation clearances and heat-shield requirements depend on the surrounding materials and installation configuration, so always refer to Beefeater's current installation instructions.
Compatible 4 Burner Built-In BBQ Cover
The compatible cover for the BBG1640SA is the Beefeater BACB154 4 Burner Built-In BBQ Cover.
Beefeater specifies the BACB154 for compatible 1600 and 1500 Series 4 Burner Built-In BBQs.
This is a worthwhile related product to add to the Hot Things product page.
BBG1640SA vs BBG1640DA – Stainless Steel or Graphite?
These are the two finish options within the 1600 Series four-burner built-in platform.
BBG1640SA – Stainless Steel
- 304-grade stainless steel finish
- 4 burner built-in BBQ
- 3,840cm² cooking area
- Rollback hood
- Full-width viewing window
- 804mm overall width
- Traditional premium outdoor-kitchen appearance
BBG1640DA – Graphite
- Dark Graphite finish
- Same four-burner format
- Same 3,840cm² cooking area
- Same compact 804mm overall width
- Contemporary dark appearance
The BBG1640SA is the better choice when you want the BBQ to coordinate with stainless steel fridges, sinks and other outdoor appliances, while the Graphite version is particularly suited to darker contemporary kitchens.
Beefeater 1600 Series vs 1200 Series 4 Burner
The 1600 Series introduces several useful upgrades over the more entry-level 1200 Series.
Beefeater 1600 Series BBG1640SA
- 304-grade stainless steel finish
- 4 × 15 MJ/hr cast-iron burners
- 3,840cm² cooking area
- Double-layer rollback hood
- Full-width glass viewing window
- Elevated multifunctional cooking rack
- Front-access full-width drip tray
- Fully seam-welded firebox
- 804mm overall width
Beefeater 1200 Series 4 Burner
- 4 × 15 MJ/hr cast-iron burners
- Cast-iron grill and hotplate
- Viewing window
- Quartz Start ignition
- Simpler overall construction and feature set
The 1600 Series is the logical step up when you want the same straightforward cast-iron gas cooking concept with a more sophisticated hood, grease-management system and overall outdoor-kitchen presentation.
BBG1640SA vs 7000 Classic BBG7640SA
If you're choosing between the 1600 Series and 7000 Classic, the 7000 represents the next step up.
1600 Series BBG1640SA
- 4 × 15 MJ/hr cast-iron burners
- 60 MJ/hr total output
- 3,840cm² cooking area
- 304-grade stainless steel finish
- Vitreous enamel firebox
- Rollback hood
- Full-width viewing window
- 804mm wide
7000 Classic BBG7640SA
- 4 × 17 MJ/hr cast-iron burners
- 68 MJ/hr total output
- 3,740cm² cooking area
- 304-grade stainless steel construction
- Fully welded 304 stainless steel firebox
- Full-width viewing window
- 820mm wide
The 1600 Series actually provides a slightly larger stated cooking area while being slightly narrower, while the 7000 Classic steps up to more powerful 17 MJ/hr burners and more extensive 304-grade stainless steel construction.
Specifications
| Feature |
Specification |
| Product |
Beefeater 1600 Series 4 Burner Built-In BBQ |
| Model |
BBG1640SA |
| BBQ Type |
Built-In |
| Finish |
Stainless Steel |
| Stainless Steel Grade |
304 Grade |
| Fuel |
Gas |
| Natural Gas Conversion |
Yes – BNGB001 |
| Number of Burners |
4 |
| Burner Material |
Cast Iron |
| Burner Output |
15 MJ/hr each |
| Total Burner Output |
60 MJ/hr |
| Total Cooking Area |
3,840cm² |
| Hotplate |
1 |
| Hotplate Material |
Porcelain-Enamelled Cast Iron |
| Grill |
1 |
| Grill Material |
Porcelain-Enamelled Cast Iron |
| Vaporisers |
Yes |
| Vaporiser Material |
Stainless Steel |
| Roasting Hood |
Yes |
| Hood Material |
Stainless Steel |
| Hood Layers |
2 |
| Hood Style |
Rollback |
| Viewing Window |
Full Width |
| Temperature Gauge |
Integrated |
| Elevated Cooking Rack |
Yes |
| Ignition |
Quartz Start |
| Firebox |
Fully Seam-Welded Vitreous Enamel |
| Drip Tray |
Full Width, Front Access |
| Flame Failure |
No |
| Controls |
Rotary Knobs |
| Control Position |
Front Mounted |
| Laser-Etched Graphics |
Yes |
| Overall Width |
804mm |
| Overall Depth |
555mm |
| Height – Hood Closed |
517mm |
| Height – Hood Open |
903mm |
These specifications are confirmed by Beefeater's current Australian listing for the BBG1640SA.
Perfect For
- Custom outdoor kitchens
- Medium-size alfresco areas
- Stainless steel outdoor kitchens
- Family BBQs
- Steak and high-temperature grilling
- Burgers
- Sausages
- Chicken
- Seafood
- Breakfast cooking
- Roasting
- Indirect cooking
- Hood-down cooking
- Natural Gas installations with conversion
Why Buy the Beefeater 1600 Series From Hot Things?
Hot Things specialises in Beefeater built-in BBQs and custom outdoor kitchens in Perth.
The BBG1640SA is a particularly versatile option for outdoor kitchens because its 804mm overall width leaves plenty of room for other useful features such as preparation space, drawers, refrigeration, sinks or a separate side burner.
Its combination of 304-grade stainless steel, cast-iron cooking surfaces, full-width viewing window, rollback hood and front-access grease tray also makes it a strong mid-range option between Beefeater's 1200 and premium 7000 Series.
Frequently Asked Questions
How many burners does the Beefeater BBG1640SA have?
The BBG1640SA has four cast-iron burners, each producing 15 MJ/hr.
How powerful is the Beefeater 1600 Series 4 Burner?
The four burners provide a combined 60 MJ/hr total burner output.
How large is the cooking area?
The BBG1640SA provides 3,840cm² of total cooking area.
Is the BBG1640SA made from 304 stainless steel?
Beefeater specifies the product finish as 304-grade stainless steel. The roasting hood is also stainless steel, while the firebox is fully seam-welded vitreous enamel.
What are the burners made from?
The four main burners are cast iron, with stainless steel vaporisers positioned above them.
Does the BBG1640SA have a grill and hotplate?
Yes. It includes one porcelain-enamelled cast-iron grill and one porcelain-enamelled cast-iron hotplate.
Can you roast in the Beefeater 1600 Series?
Yes. The double-layer rollback roasting hood allows the BBQ to be used for hood-down and indirect cooking as well as conventional grilling.
Does the BBG1640SA have a viewing window?
Yes. The roasting hood incorporates a full-width glass viewing window, allowing you to check your food while keeping the hood closed.
Does it have a temperature gauge?
Yes. The hood has an integrated temperature gauge.
Does the BBG1640SA have a warming rack?
Yes. It includes an elevated multifunctional cooking rack, which can be used for keeping food warm or as a second elevated cooking area.
What ignition system does it use?
The BBG1640SA uses Quartz Start ignition on all four burners.
How does the grease tray work?
The BBQ has a full-width front-access drip tray. Raised edges on the hotplate help direct grease towards the plate opening and into the catchment tray.
Does the BBG1640SA have flame failure?
No. Beefeater lists Flame Failure: No for this model.
Can the BBG1640SA be converted to Natural Gas?
Yes. Beefeater lists the BNGB001 Natural Gas Conversion Kit as compatible with the BBG1640SA.
What rear heat shield fits the BBG1640SA?
Beefeater lists the BA10RHS Rear Heat Shield as compatible with the BBG1640SA for outdoor-kitchen installations.
What cover fits the BBG1640SA?
The compatible cover is the Beefeater BACB154 4 Burner Built-In BBQ Cover, designed for compatible 1600 and 1500 Series four-burner built-in BBQs.
How wide is the Beefeater BBG1640SA?
The BBG1640SA is 804mm wide overall.
What are the dimensions of the BBG1640SA?
The overall appliance dimensions are:
- Width: 804mm
- Depth: 555mm
- Height with hood closed: 517mm
-
Height with hood open: 903mm
These are overall appliance dimensions. For an outdoor-kitchen installation, always use Beefeater's current installation instructions for the required cut-out, ventilation and clearances.
